Potato is an annual herb of Solanaceae, introduced into China by the Dutch in the middle of the 17th century, in our country has more than 300 years of cultivation history. Potato tuber contains 8 ~ 29% starch and protein, minerals and vitamins and other nutrients, good yield, wide adaptability, has gradually become an important human food, vegetables, feed and industrial raw materials. Potato is one of the five staple foods in China, with its high nutritional value, strong adaptability and large yield, and is the third most important food crop in the world, after wheat and corn.


The potato tuber contains a lot of water, the average water content is nearly 80%, the stem and leaves are luxuriant, and the transpiration is large. Therefore, during the whole growth period, especially into the potato bearing period, it is necessary to absorb a lot of water, and the lack of soil water is difficult to produce. It is generally believed that for every 1kg of dry matter formed, 300-600kg of water is consumed.

Tuber formation stage is the period of the most water demand, in the early and full tuber forming stage, the soil water content of 70-80% of the maximum field water capacity is more suitable.

Tuber formation and rapid expansion period, tuber peak period of water consumption accounted for more than half of the total water demand of the whole growth period, soil water content to maintain the maximum field water capacity of about 70%. Therefore, the early maturing varieties need the most water from the bud stage to the end of flowering, the stems and leaves grow rapidly, the tubers form in large quantities. The whole stage from flowering to stem and leaves stop growing belongs to tuber swelling stage, and the water requirement period is longer than that of early maturing varieties.

According to the test results, for every 500kg tuber produced, it is necessary to absorb 2.5kg of pure nitrogen, 1kg of phosphorus and 5.5kg of potassium from the soil. In the case of no fertilization, if 500kg tubers can be produced per mu, and the planned yield of 1500kg tubers per mu, it is necessary to supplement the application of pure nitrogen of 5 kg, phosphorus of 2kg, potassium of 11kg. During the whole growth period of potato, different growth stages require different types and amounts of nutrients. The absorption of fertilizer was very small in the seedling stage, increased sharply in the seedling stage, reached the peak in the early stage of potato formation, and then dropped sharply.

According to the percentage of nitrogen, phosphorus and potassium in the total absorption amount, nitrogen, phosphorus and potassium accounted for 6%, 8% and 9% respectively from germination to emergence. The seedling stage was 33%, 34% and 36%, respectively. The potato bearing period was 56%, 58% and 55%, respectively.

Integration of water and fertilizer

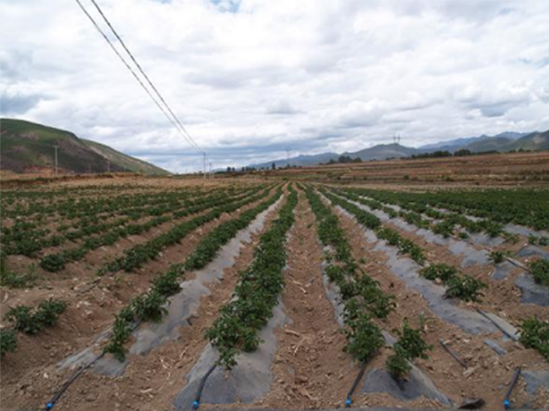

Potato is a shallow root crop, with roots mostly distributed 40cm below the surface of the soil. The roots of early maturing varieties are generally less developed than those of late maturing varieties, and the root distribution of early maturing varieties is shallow, and the distribution of late maturing varieties is wide and deep. Potatoes need more water, water supply can not be interrupted during the growth process, must supply enough water to yield. Especially in the tuber formation and tuber growth stage, to keep the soil moist state, once the water shortage is easy to form tuber malformation, quality reduction, serious yield reduction, so efficient irrigation of potatoes is imperative. However, the traditional irrigation method of "flood irrigation" is backward, the water channel leakage is serious, the water utilization rate is low, which is not conducive to the growth of potato. Potato irrigation should be irrigated evenly, water should be saved and progress should be fast.

2024/12/20241224155547428.png?cG90YXRvMS5wbmc=

Sensing System

Head System

Pipe Network

Four-emotion System

Sensing System

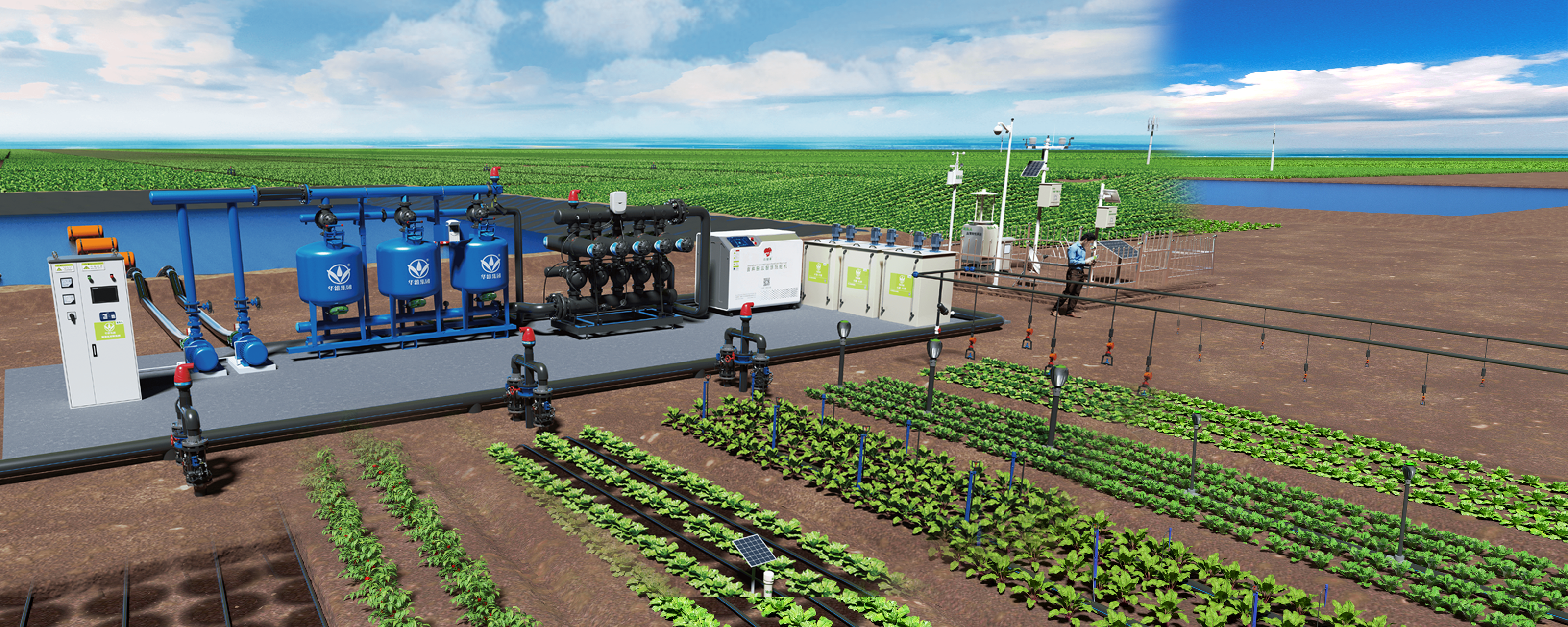

The head hub of the irrigation system includes components such as pure water treatment system, filtration facilities, fertilization equipment, control equipment, safety protection and measurement facilities. Its function is to extract water from the water source for pressurization, add fertilizers or pesticides, purify it, and undertake the tasks of pressurization, water supply (fertilizers, pesticides), filtration, measurement, and regulation of the entire irrigation system

Head System

The head hub of the irrigation system includes components such as pure water treatment system, filtration facilities, fertilization equipment, control equipment, safety protection and measurement facilities. Its function is to extract water from the water source for pressurization, add fertilizers or pesticides, purify it, and undertake the tasks of pressurization, water supply (fertilizers, pesticides), filtration, measurement, and regulation of the entire irrigation system

  • DFA Series Laminated Automatic Backwash Filtration System
  • Cabinet Cloud Wisdom Fertilizer Machine

DFA Series Laminated Automatic Backwash Filtration System

recommend info

Cabinet Cloud Wisdom Fertilizer Machine

recommend info

Pipe Network

The head hub of the irrigation system includes components such as pure water treatment system, filtration facilities, fertilization equipment, control equipment, safety protection and measurement facilities. Its function is to extract water from the water source for pressurization, add fertilizers or pesticides, purify it, and undertake the tasks of pressurization, water supply (fertilizers, pesticides), filtration, measurement, and regulation of the entire irrigation system

Four-emotion System

The head hub of the irrigation system includes components such as pure water treatment system, filtration facilities, fertilization equipment, control equipment, safety protection and measurement facilities. Its function is to extract water from the water source for pressurization, add fertilizers or pesticides, purify it, and undertake the tasks of pressurization, water supply (fertilizers, pesticides), filtration, measurement, and regulation of the entire irrigation system

Location: Jiangxi Province Fuzhou Hongxing Reclamation Farm

Time: 2018

Project Brief: Since its inception, the base has invested 160 million yuan, built 3,000 acres of high-standard farmland, introduced kiwifruit tissue culture and rapid breeding factories under the Chinese Academy of Sciences into the base, and built a full traceability system. Automatic integrated water and fertilizer system (hanging drip irrigation and sprinkler irrigation) was built by Agrist.
