Home>Products>Pipe Fittings>three-way connecting pipe fittings

Product Details

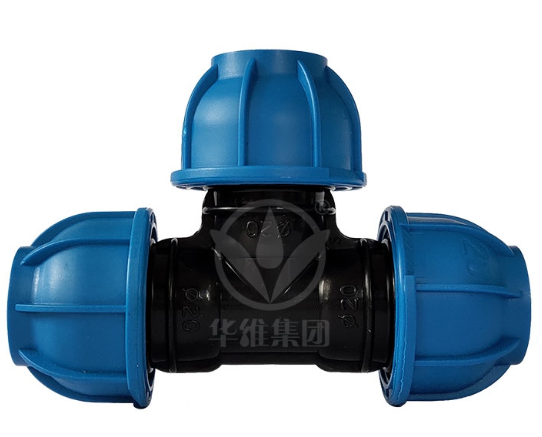

The Huawei locking quick connect pipe series consists of three components: a conical POM material locking clamp, a stepped annular gasket, and a high-quality rubber sealing ring. Unique and scientifically designed structure, high-quality materials that balance hardness and toughness, sturdy and durable, with good sealing performance. Convenient connection, easy disassembly, strong flexibility, easy recycling, beautiful and practical.

The pressure resistance level is PN10, with a maximum pressure of 2MPa. When connected to PE pipes, it can withstand a pressure of over 1.6MPa. It can also be directly connected to commonly used pipes such as PPR, U-PVC, and steel pipes, and has a wide range of applications.

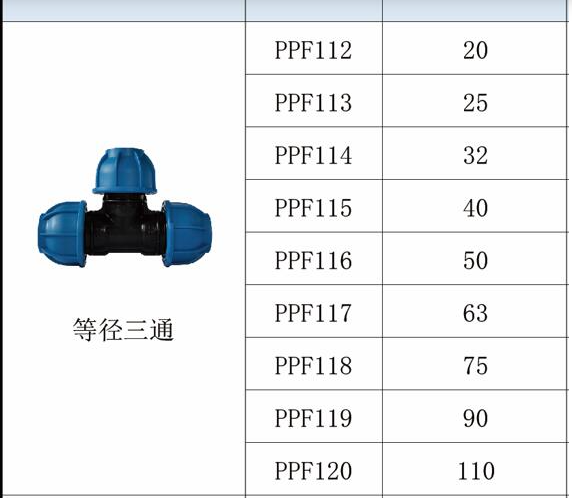

The sizes cover commonly used specifications such as Medium 20, Medium 25, Medium 32, Medium 40, Medium 50, Medium 63, Medium 75, Medium 90, Medium 110, etc. Larger sizes can be customized according to needs.

Model: PPF112

  • National guarantee

  • After-sales service hotline

    400-820-0406

  • Warranty policy

  • Graphic details
  • Parameter specification
  • Data download

Product Details The Huawei locking quick connect pipe series consists of three components: a conical POM material locking clamp, a stepped annular gasket, and a high-quality rubber sealing ring. Unique and scientifically designed structure, high-quality materials that balance hardness and toughness, sturdy and durable, with good sealing performance. Convenient connection, easy disassembly, strong flexibility, easy recycling, beautiful and practical. The pressure resistance level is PN10, with a maximum pres

Parameters:
