Home>Products>Micro-injection equipment>1730 Pressure Compensating Drip Tape

·  Uniformity is the most important index in the efficiency of irrigation and fertilization. The laying length of the irrigator and the high drop topography of the mountains and hills lead to different water and fertilizer flows from the front and back ends, and the crop growth is uneven.

· After breaking the foreign monopoly of 1828 pressure compensating tape, Agrist has launched 1730 series pressure compensating drip tape to solve the above problems.


  • National guarantee

  • After-sales service hotline

    400-820-0406

  • Warranty policy

  • Graphic details
  • Parameter specification
  • Data download

    Highlights

    ·  Anti-drip: After the system is closed, the water pressure in the pipeline is 0.01MPa-0.03MPa, and the drip head stops discharging water, but the pipeline is still full of water (without this function, the water will run out by itself). Ensure that after the system is started again, all the drip heads at the front and back ends are discharged immediately and simultaneously. It is especially suitable for crops irrigated with high frequency and short duration (usually a single irrigation time measured in seconds).

    ·  Uniformity: In the working range of pressure compensation, the flow rate of any dropper in the irrigation area is consistent, and it is not affected by conditions such as near and far and high and low terrain, so as to ensure the uniformity of irrigation.



    Application

    ·  Can be widely used in vegetables, fruits, flowers, herbs, seedlings and other crops; Especially suitable for large areas, steep or undulating mountains and hills and other harsh terrain areas.

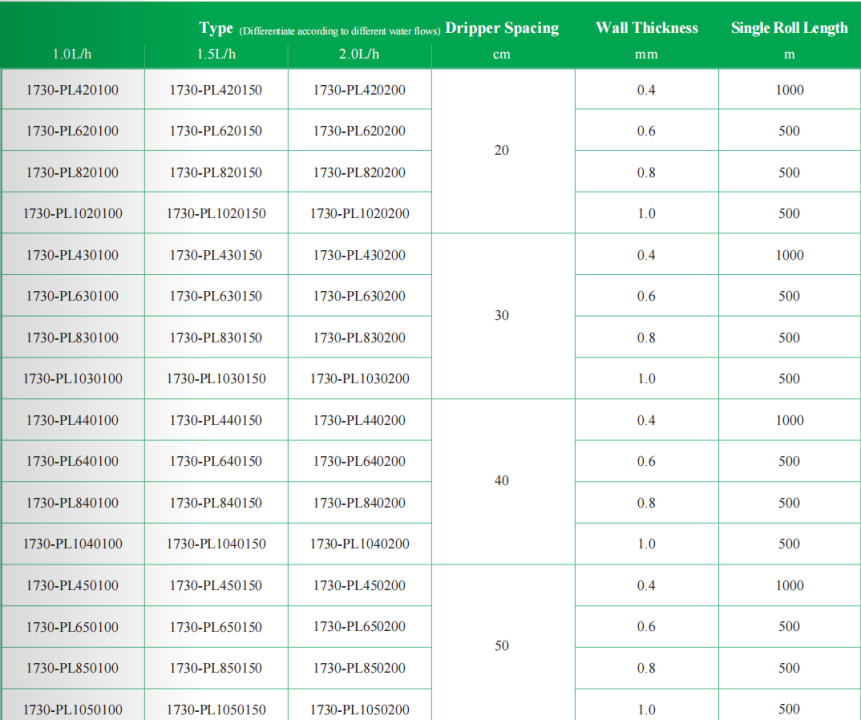

Parameters

lPressure compensation range: 0.05-0.4Mpa;

lManufacture precision diaphragm, compensation performance is more stable;

lSelf-washing structure design, better plugging resistance;

lWide and deep energy dissipation labyrinth channel design, can produce strong turbulence;

lUnique inlet filter window design prevents particles from clogging the internal dripper.
